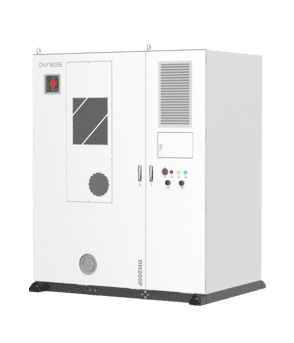

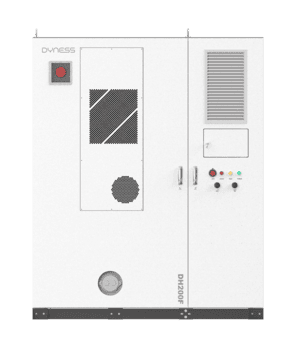

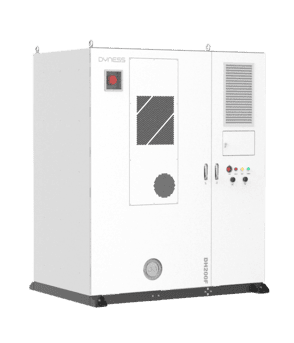

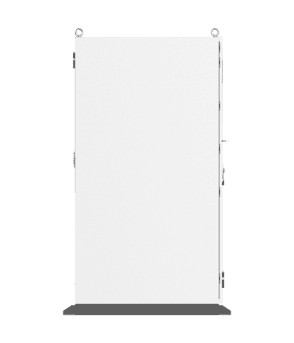

DH200F
- 100kW/215kWh
- Maximum support for 12 machines in AC parallel
All-in-one design, integrated with PV. ESS and D.G., smart air-cooled heat dissipation, single cabinet capacity of 215kWh. Suitable for industrial and commercial scenarios, which supports functions like timed scheduling, peak-shaving, PV self-generation & consumption and so on.
Product Features
-
covering the whole scenario of photovoltaic, storage and diesel generator
-
All-in-one multi-functional integration
-
three-level detection + multiple extinguishing agents + EMS inteligent judgement
-
Maximum support for 12 machines in AC parallel, expandable to 2.5MWh
-
Intelligent and efficient STS can be equipped, and the switching time between on-grid and off-grid is less than 20ms
Technical Parameters
-
Product DH200F PV+ESS All-in-one Cabinet Dimension (W*D*H) 1.85*1.2*2.25m Weight 2800kg Air Conditioner Power 3kW(Cooling) Temperature -20~50℃(Derating above 40℃) Humidity 0~95%(Non-condensing) Ingress protection IP55 Anti-corrosion Grade C3 Noise ≤75dB Elevation ≤3000m（Derating above 2000m） Cooling method Air cooling
Display Touch screen Fire Protection Optional:Aerosol/(FM-200)/(Novec1230) Communication Ethernet、4G Certification IEC62619、IEC63056、 IEC60730、EN62477、EN61000-6-2/4、GB/T 36276 Battery
Rated Power 100kW AC Rated Voltage 400V Wiring Method 3P4L+PE Frequency 50Hz AC Maximum Current 167A Max. Number Of Parallel Expansions 12 AC (On-grid)：
Rated Power 100kW AC Rated Voltage 400V Wiring Method 3P4L+PE Frequency 50Hz AC Maximum Current 167A Max. Number Of Parallel Expansions 10 AC(Off-grid)：
Rated Power 100kW AC Rated Voltage 400V Wiring method 3P4L+PE Frequency 50Hz AC Maximum Current 167A Unbalanced Load 100% Switching time between on-grid and off-grid
＜20ms
Max. Number Of Parallel Expansions 5 Photovoltaic
Input Voltage 200-670V Max. Input Current 100A Short-circuit Current 150A MPPT Path 0~3 Max. Input Power 50kW per circuit Photovoltaic Input Power 50kW (Power 1.1 times overload)
