Tower Pro

  • Up to 23 KWh
  • Modular Adaptive Stacking Design

Dyness Tower Pro Series with IP55 protection level offers multiple energy options through an expandable modular design (2-6 modules combined), and the expandable parallel connection of up to 12 clusters allows for a maximum capacity of 276.48 kWh. The stackable auto-configuration modules make the system easier to install and maintain. Tower Pro also offers an optimized user experience with ultra-rapid charge (1C), LED display on the BDU, and remote upgrade and monitoring.

Product Features

  • c2icon01.svg

    Optimized user experience
    LED display, real-time monitoring and remote upgrade (optional)

  • c2icon02.svg

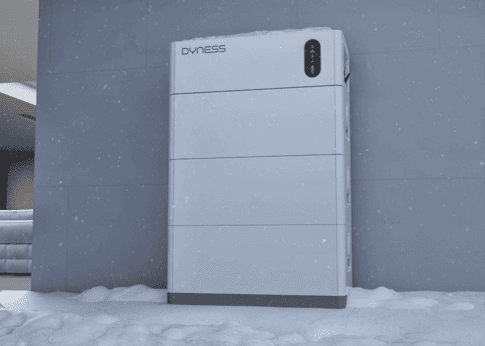

    High Protection Level
    Indoor & outdoor installations

  • c2icon03.svg

    Ultra-fast charging
    One hour to fully charge the battery

  • c2icon04.svg

    Easy to install
    Stackable auto-configuration modules, wireless connection

  • download-653.svg

    Wide compatibility
    Matching leading inverter brands

Technical Specifications

  • 3.png
  • 1.png
  • 2.png
  • Model
    Tower Pro TP7
    Battery Module Type
    LiFePO4
    Battery Module Quantity
    2
    Rated Energy
    7.68kWh
    Operating Voltage
    168~219V
    Nominal Voltage
    192V
    Nominal Capacity

    40Ah

    Max. Continuous Charge/Discharge Power
    7.68kW
    Recommended Depth of Discharge (DOD)
    95%
    Dimensions [W*D*H]
    587*310*788 mm
    Net Weight [kg]
    99.5kg
    Charging Temperature Range
    0~55°C/-20~55°C (with heating function)
    Discharging Temperature Range
    -20~55°C
    Communication
    CAN/RS485/RS232
    Cycle life
    ≥8000 Cycles
    Protection Level
    IP55
    ColorWhite
    Alarm
    Overcharge/Overdischarge/Overcurrent/Overtemperature/Short Circuit
    Pros
    Can be used in both off-grid and hybrid setups, compact design, modular expansion
    Battery Module Name
    HV9640
    Expansion
    Max. 12 Tower Pro can be connected in parallel
    Certification
    UN38.3/VDE2510-50/IEC62619/IEC63056/IEC62477/IEC62040/CE-EMC/ROHS
    Compatible Inverters
    Ingeteam/Kostal/Goodwe/Solis/SAJ/Sinexcel/Atess/Deye/Sunways/Ecactus etc.
  • Model
    Tower Pro TP11
    Battery Module Type
    LiFePO4
    Battery Module Quantity
    3
    Rated Energy
    11.52kWh
    Operating Voltage
    252~328V
    Nominal Voltage
    288V
    Nominal Capacity

    40Ah

    Max. Continuous Charge/Discharge Power
    11.52kW
    Recommended Depth of Discharge (DOD)
    95%
    Dimensions [W*D*H]
    587*310*1009 mm
    Net Weight [kg]
    135kg
    Charging Temperature Range
    0~55°C/-20~55°C (with heating function)
    Discharging Temperature Range
    -20~55°C
    Communication
    CAN/RS485/RS232
    Cycle life
    ≥8000 Cycles
    Protection Level
    IP55
    ColorWhite
    Alarm
    Overcharge/Overdischarge/Overcurrent/Overtemperature/Short Circuit
    ProsCan be used in both off-grid and hybrid setups, compact design, modular expansion
    Battery Module Name
    HV9640
    Expansion
    Max. 12 Tower Pro can be connected in parallel
    Certification
    UN38.3/VDE2510-50/IEC62619/IEC63056/IEC62477/IEC62040/CE-EMC/ROHS
    Compatible Inverters
    Ingeteam/Kostal/Goodwe/Solis/SAJ/Sinexcel/Atess/Deye/Sunways/Ecactus etc.
  • Model
    Tower Pro TP15
    Battery Module Type
    LiFePO4
    Battery Module Quantity
    4
    Rated Energy
    15.36kWh
    Operating Voltage
    336~438V
    Nominal Voltage
    384V
    Nominal Capacity

    40Ah

    Max. Continuous Charge/Discharge Power
    15.36kW
    Recommended Depth of Discharge (DOD)
    95%
    Dimensions [W*D*H]
    587*310*1230 mm
    Net Weight [kg]
    170.5kg
    Charging Temperature Range
    0~55°C/-20~55°C (with heating function)
    Discharging Temperature Range
    -20~55°C
    Communication
    CAN/RS485/RS232
    Cycle life
    ≥8000 Cycles
    Protection Level
    IP55
    ColorWhite
    Alarm
    Overcharge/Overdischarge/Overcurrent/Overtemperature/Short Circuit
    ProsCan be used in both off-grid and hybrid setups, compact design, modular expansion
    Battery Module Name
    HV9640
    Expansion
    Max. 12 Tower Pro can be connected in parallel
    Certification
    UN38.3/VDE2510-50/IEC62619/IEC63056/IEC62477/IEC62040/CE-EMC/ROHS
    Compatible Inverters
    Ingeteam/Kostal/Goodwe/Solis/SAJ/Sinexcel/Atess/Deye/Sunways/Ecactus etc.
  • Model
    Tower Pro TP19
    Battery Module Type
    LiFePO4
    Battery Module Quantity
    5
    Rated Energy
    19.2kWh
    Operating Voltage
    420~547V
    Nominal Voltage
    480V
    Nominal Capacity

    40Ah

    Max. Continuous Charge/Discharge Power
    19.2kW
    Recommended Depth of Discharge (DOD)
    95%
    Dimensions [W*D*H]
    587*310*1451 mm
    Net Weight [kg]
    206kg
    Charging Temperature Range
    0~55°C/-20~55°C (with heating function)
    Discharging Temperature Range
    -20~55°C
    Communication
    CAN/RS485/RS232
    Cycle life
    ≥8000 Cycles
    Protection Level
    IP55
    ColorWhite
    Alarm
    Overcharge/Overdischarge/Overcurrent/Overtemperature/Short Circuit
    ProsCan be used in both off-grid and hybrid setups, compact design, modular expansion
    Battery Module Name
    HV9640
    Expansion
    Max. 12 Tower Pro can be connected in parallel
    Certification
    UN38.3/VDE2510-50/IEC62619/IEC63056/IEC62477/IEC62040/CE-EMC/ROHS
    Compatible Inverters
    Ingeteam/Kostal/Goodwe/Solis/SAJ/Sinexcel/Atess/Deye/Sunways/Ecactus etc.
  • Model
    Tower Pro TP23
    Battery Module Type
    LiFePO4
    Battery Module Quantity
    6
    Rated Energy
    23.04kWh
    Operating Voltage
    504~657V
    Nominal Voltage
    576V
    Nominal Capacity

    40Ah

    Max. Continuous Charge/Discharge Power
    23.04kW
    Recommended Depth of Discharge (DOD)
    95%
    Dimensions [W*D*H]
    587*310*1672 mm
    Net Weight [kg]
    241.5kg
    Charging Temperature Range
    0~55°C/-20~55°C (with heating function)
    Discharging Temperature Range
    -20~55°C
    Communication
    CAN/RS485/RS232
    Cycle life
    ≥8000 Cycles
    Protection Level
    IP55
    Color
    White
    Alarm
    Overcharge/Overdischarge/Overcurrent/Overtemperature/Short Circuit
    Pros
    Can be used in both off-grid and hybrid setups, compact design, modular expansion
    Battery Module Name
    HV9640
    Expansion
    Max. 12 Tower Pro can be connected in parallel
    Certification
    UN38.3/VDE2510-50/IEC62619/IEC63056/IEC62477/IEC62040/CE-EMC/ROHS
    Compatible Inverters
    Ingeteam/Kostal/Goodwe/Solis/SAJ/Sinexcel/Atess/Deye/Sunways/Ecactus etc.
