STACK100 Sales AreaGlobal (Excluding North America) Diversion Control Check
STACK100
- 15.36-76.8kWh
- Max expandable to 921.6kWh
The Dyness STACK100 energy storage system is widely used in energy storage sector. It adopts modular design and can be used for residential and C&I applications. The reliable LiFeP04 technology ensures maximum safety and a longer life cycle.
Product Features
-
Flexible Expansion
Up to 12 clusters in parallel, 15KWh--921KWh capacity -
Ultra Safe
Intelligent fire extinguishing system, react within 5 seconds. -
1C Rate
Suitable for grid frequency regulation, charging stations and other scenarios, cost saving. -
Easy Installation
0 wiring, rackless free stacking, plug-and-play, one cluster installation in 30min. -
Automatic Self-heating
-20°C to 55°C operating temperature (optional)
Technical Specifications
-
Product Model STACK100 Battery Module Type LiFePO4 Module Voltage/Capacity 51.2V/100Ah System Energy Range 15.36-76.8kWh Cycle Life ≥8000 cycles / 10 Years
Signal Module Weight 47Kg Max. Single Cluster Dimension 591*390*1700mm Expansion Up to 12 clusters in parallel

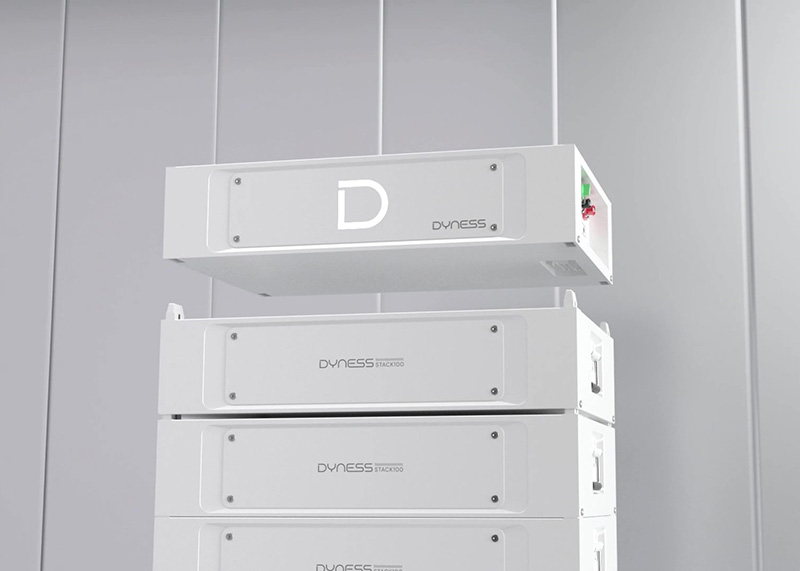

Modular Design, Plug-and-Play
Frameless stacking cuts space & costs.
47kg module, 30-min quick install.
Built-in square steel frame ensures stable load-bearing.

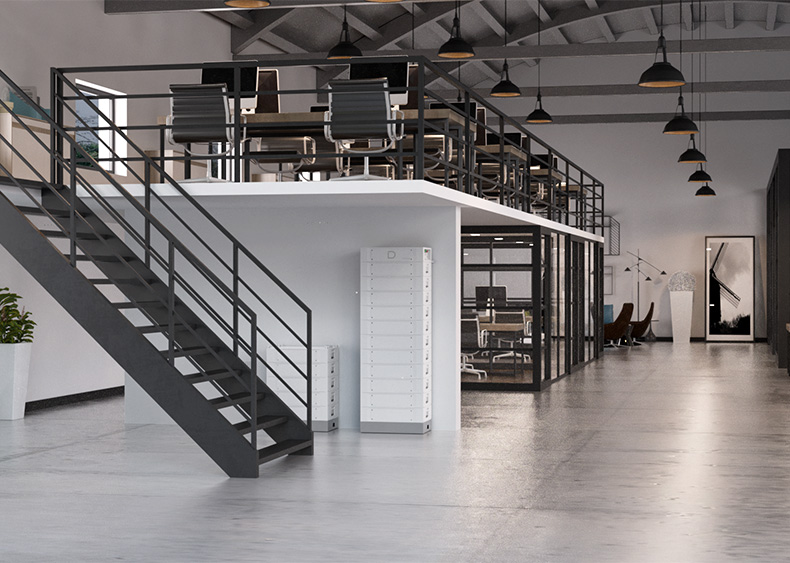

Scalable, Multi-scenario
Supports 12-cluster parallel.
15kWh-921kWh energy range.
restaurants, warehouses, farms, and more.
3-year modular flexibility, scalable for cost savings.

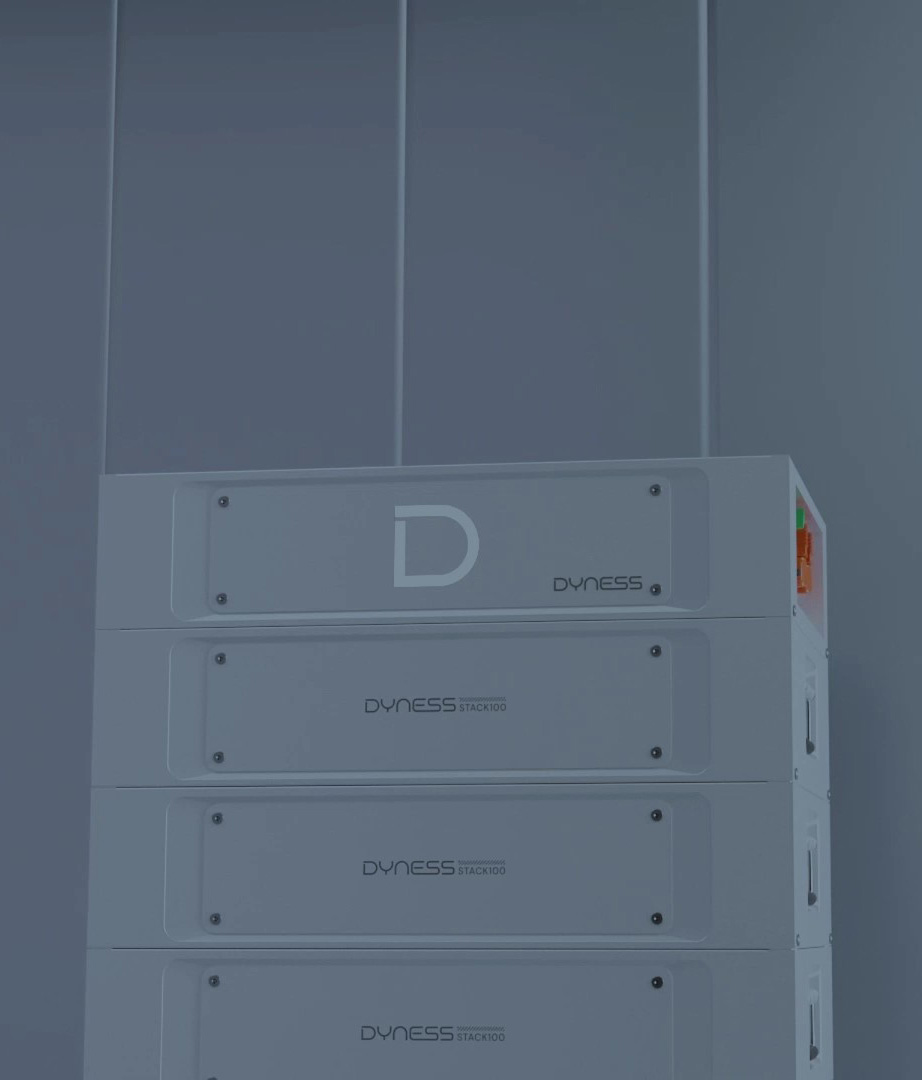

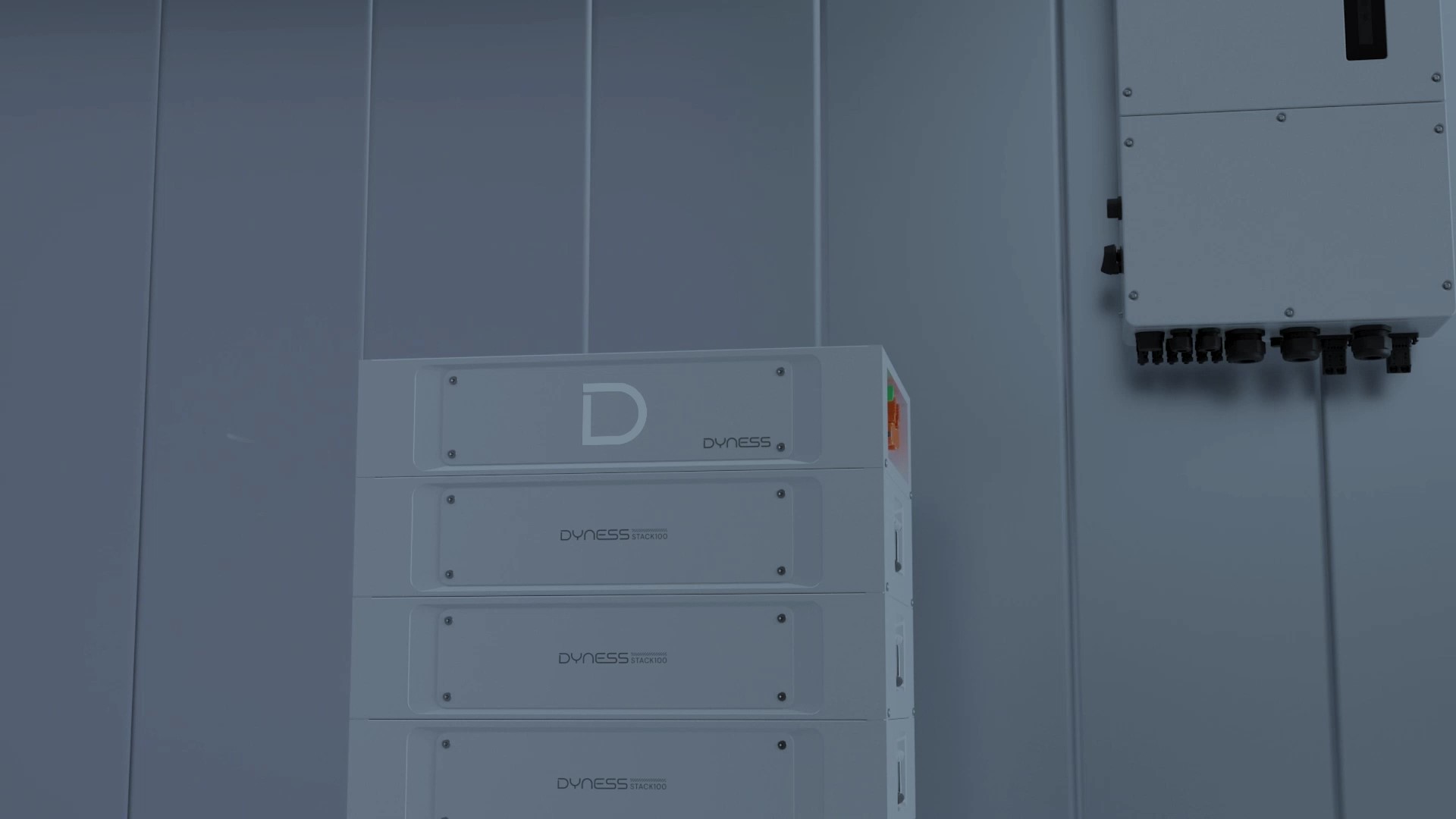

1C Charge/Discharge, Noticeable Efficiency Boost
Modules independently charge/discharge at max 86.4kW, ensuring business runs smoothly. Charging at lows, discharging at peaks cuts electricity costs.

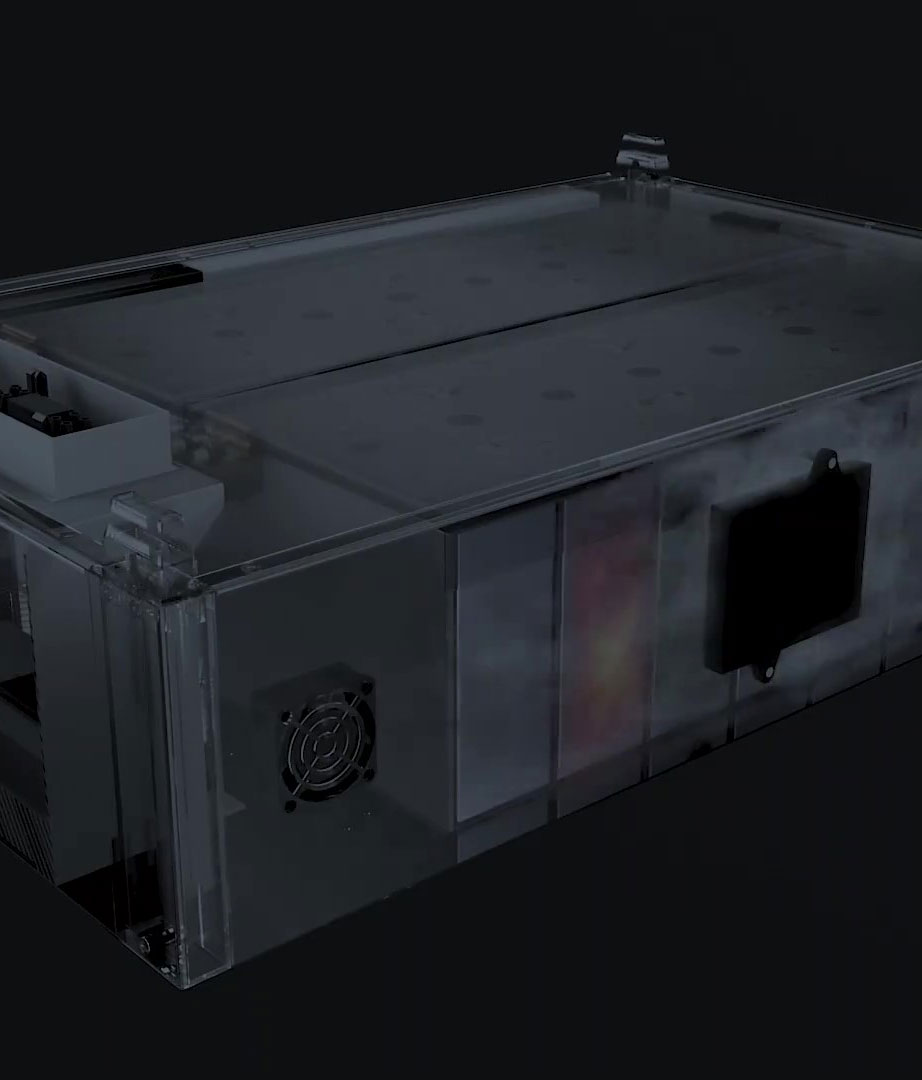

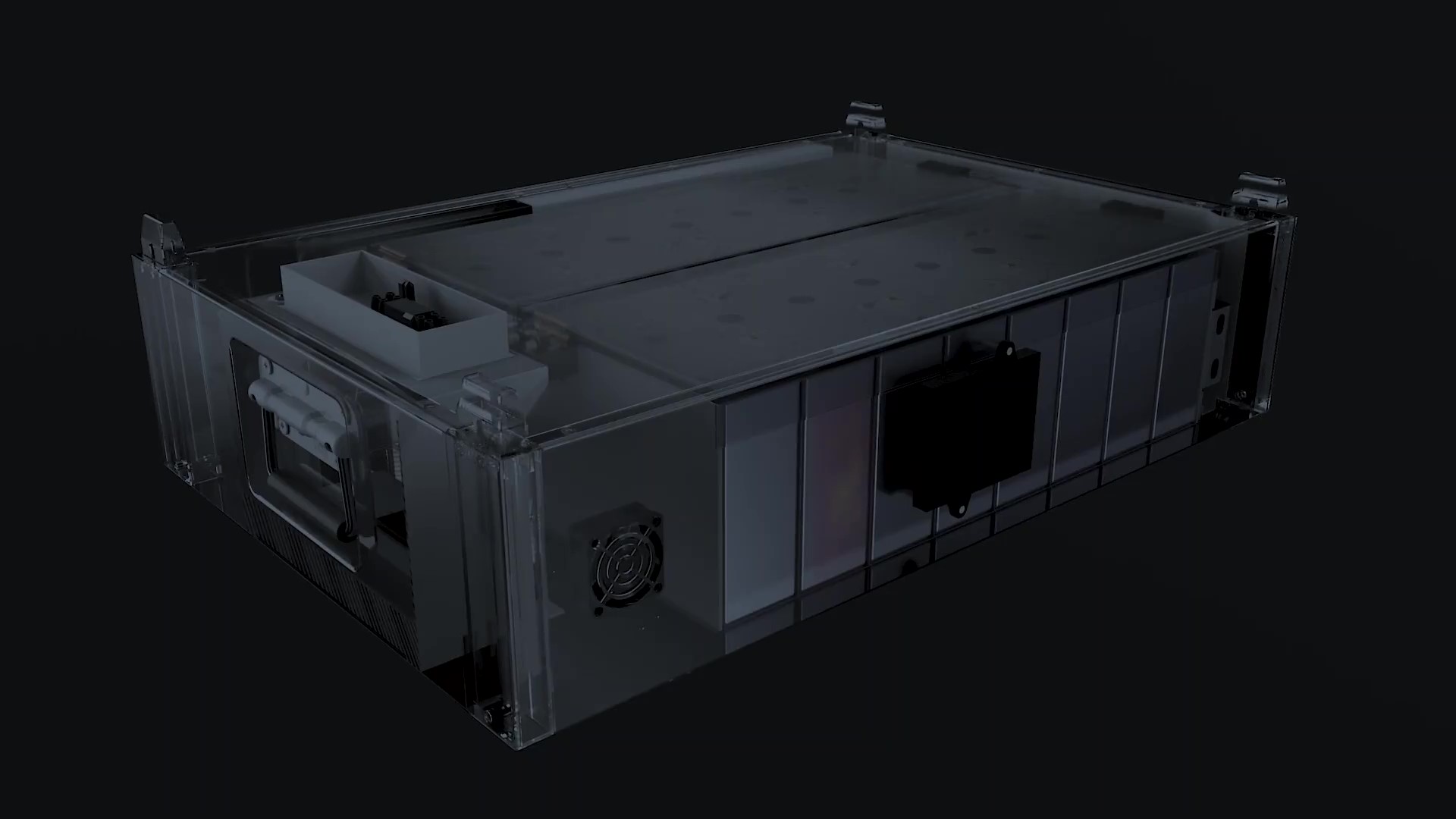

5S Auto Fire Extinguishing, Thoughtful Protection
Each module includes an aerosol fire extinguisher that quickly acts within 5 seconds of detecting high temp, minimizing fire risks and ensuring safety.

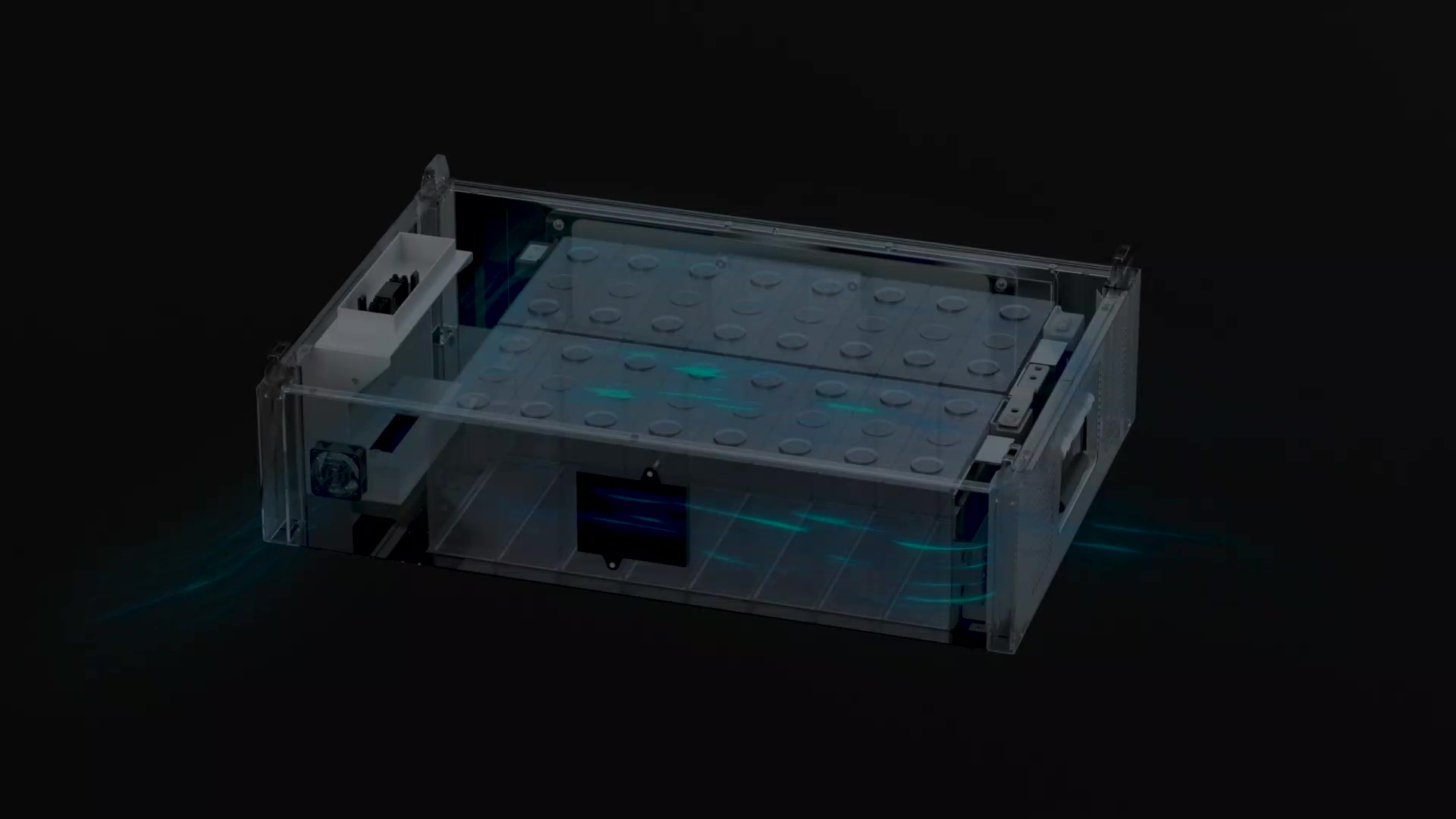

New Internal Cooling Design Boosts Lifespan By 20%
Our battery module's unique vents keep temps steady (≤3℃ difference), keeping cells cool indoors and extending battery life by 20%.
FAQ
-
Does the Dyness Stack100 battery have a self-heating function? How does it work?
Yes, the Dyness Stack100 is equipped with a self-heating function.When the temperature drops to around 2°C, the system automatically activates the heating function and raises the battery temperature up to approximately 5°C. This ensures the battery remains within a safe operating range for charging and discharging, even in low-temperature environments.
-
Can the Dyness Stack100 battery operate in extreme temperatures (e.g., -20°C)?
Yes, the Dyness Stack100 is designed to operate in low-temperature environments. It is equipped with a self-heating function that helps maintain the battery temperature above 2°C, ensuring safe charging and discharging even in extreme cold conditions such as -20°C.
-
Can Dyness Stack100 batteries be connected in parallel?
Yes, Dyness Stack100 batteries support parallel connection with up to 12 clusters, allowing flexible system expansion to meet higher energy storage requirements.
-
Is the Dyness Stack100 compatible with Solis inverters?
Yes, the Dyness Stack100 is compatible with Solis inverters. For detailed information on supported Solis inverter models, please refer to the official inverter compatibility list, or contact our technical support team for assistance.
-
Is the Dyness Stack100 system plug-and-play?
Yes. The Dyness Stack100 is designed as a plug-and-play system. The battery modules and BDU can be directly stacked without additional internal wiring between units.To complete installation and startup, simply connect the power and communication cables to the inverter, and the system will be ready for operation.
