DH2150Y-BC
- 2150kWh
- 20-foot high-cube design，Maximum capacity 2.15MWh

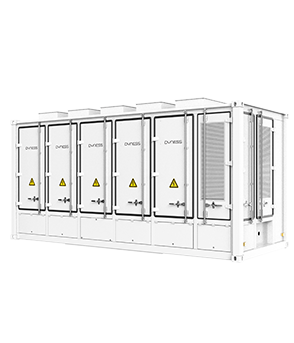

The DH2150Y-BC mobile liquid-cooled storage and charging integrated container features a standard 20-foot high-cube design,with a total system capacity of 2.15MWh. It is equipped with a self-developed storage and charging operation management platform, it significantly enhances charging convenience and flexibility, enabling plug-and-play deployment to solve the "last-mile" charging challenge.
Product Features
-
Integrated Storage&Charging
DC coupled of ESS and charging,highly compact design to overcome parking space limitations. -
Smart&High Efficiency
Dynamically distributes charging power, combined with AI-powered cloud platform management for precise control, reducing costs and improving efficiency. -
Cluster-Level Management
Independent management prevents system-wide downtime due to single unit failures and mitigates battery inconsistency issues. -
Emergency Backup Power
Supports off-grid operation with plug-and-play deployment, meeting temporary power supply and distributed site requirements. -
Ultimate Safety
PACK/cluster/water fire suppression +venting design+3-stage circuit breaking. -
Simple O&M
Modular design for easy installation, layout, and servicing, and support for online monitoring and O&M.
Technical Parameters
-
Product Model DH2150Y-BC Battery Type LiFePO4 Nominal Capacity 2150kWh Dimension (W*D*H) 6058*2438*2896mm (High Cube) Weight Approx. 28T (TBD) Ingress protection IP55 Cooling Method PACK Liquid-cooling, DC/DC Air-cooling
