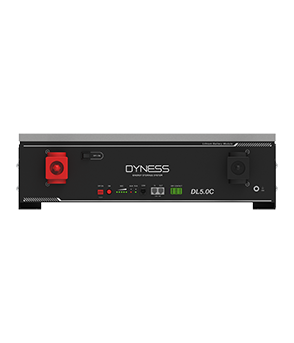

DL5.0C

  • 5.12 kWh
  • LiFePO4

Dyness DL5.0C adopts economic design, and is tailor-made for residential and small commercial application. This LFP battery module supports remote upgrade and APP monitoring, and provides multiple installation methods. It is scalable from 5.12kWh to 256kWh (max. 50 modules in parallel), providing various energy options to meet different requirements.

Product Features

  • c2icon01.svg

    APP Monitoring (optional)
    Real-time monitoring & Remote upgrade available

  • c2icon02.svg

    Module Design
    Flexible expansion

  • c2icon03.svg

    Various Mounting Methods
    Wall-mounted, floor-standing and stacked

  • c2icon04.svg

    High Safety LFP
    Cell level monitoring and balancing

  • download-288.svg

    Wide Compatibility
    Matching with leading inverters


Technical Specifications

  • 1.png
  • 3.png
  • 2.png
  • Model
    DL5.0C
    Battery Type
    LiFePO4
    Nominal Battery Energy
    5.12 kWh
    Nominal Capacity
    100Ah
    Nominal Voltage
    51.2V
    Operating Voltage
    44.8~57.6V
    Recomended Charge & Discharge C Rate
    0.5C
    Maximum Discharge C rate
    1C
    Recommended Charge/Discharge Current
    50A
    Max. Power Charge/Discharge Current
    75A/100A
    Peak Power Charge/Discharge Current
    110A(15S)
    Depth of Discharge (DOD)
    95%
    Net Weight
    54 kg
    Dimension[W*D*H]
    558*545*150 mm
    Charging Temp. Range
    0~55℃
    Discharging Temp. Range
    -20~55°C
    Communication
    CAN/RS485/RS232
    Cycle Life
    ≥6000 Cycles
    Protection Level
    IP20
    Expansion
    Up to 50 units in parallel
    Pros
    Can be used in both off-grid and hybrid setups, compact design
    Certification & Safety Standard
    UN38.3/CE-EMC/IEC62619/CEI-021
    Compatible Inverters
    SMA/Victron/Ingeteam/Delios/Goodwe/Solis/Deye/SAJ/Voltronic/Sungrow etc.
