PowerBrick

  • 14.336 kWh
  • Maximum can be expanded to 716.8kWh

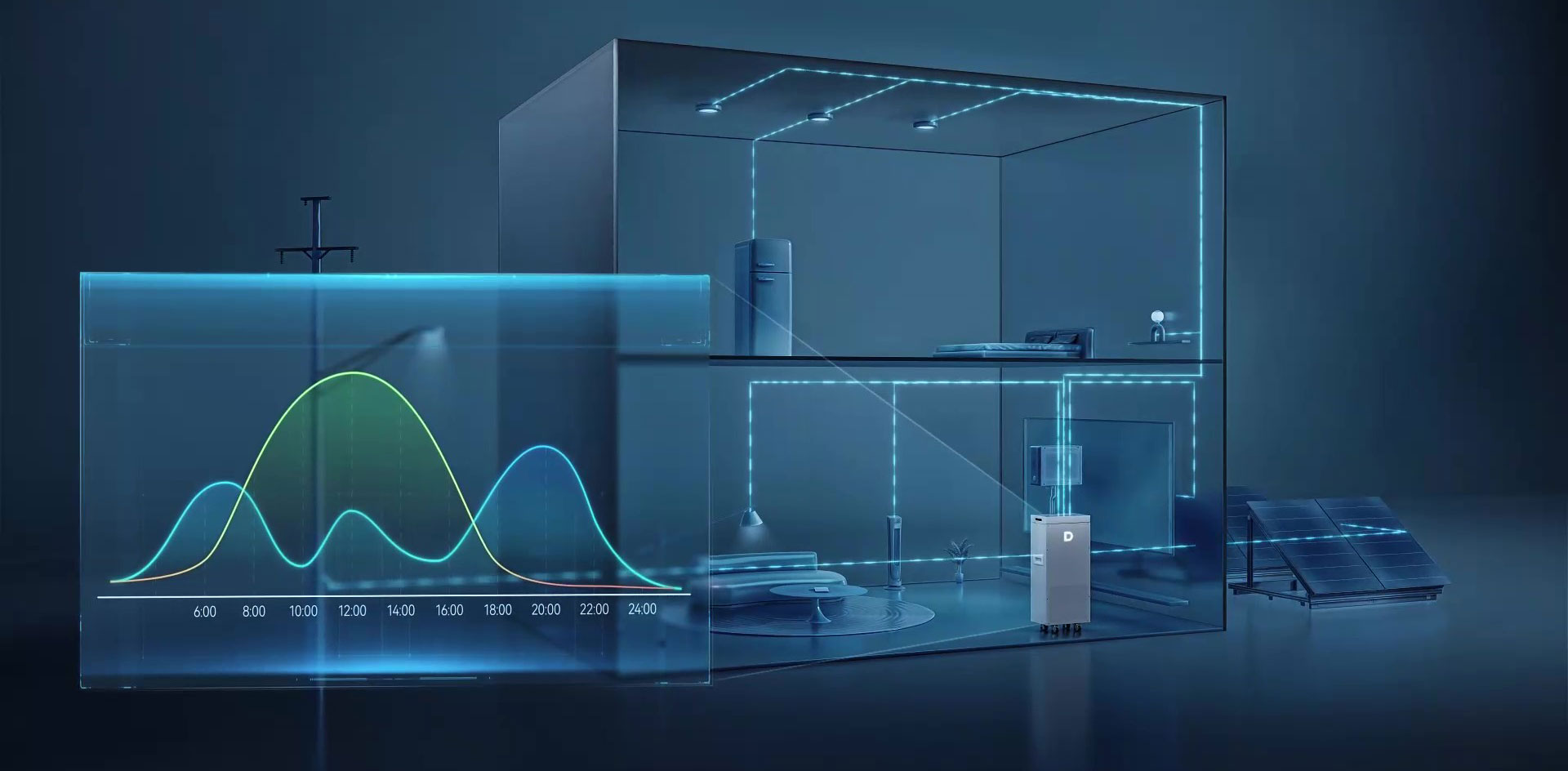

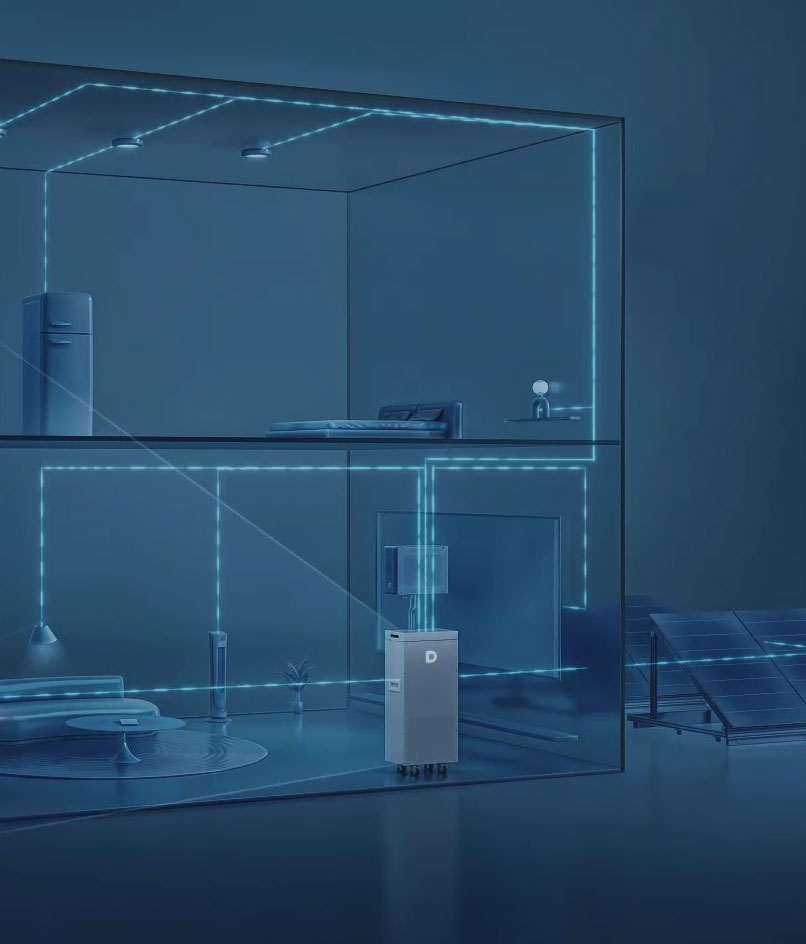

The DYNESS battery PowerBrick module is widely used in energy storage sector. It adopts modular design and can be used for residential applications. The reliable LiFeP04 technology ensures maximum safety and a longer life cycle.

Product Features

  • c2icon01.svg

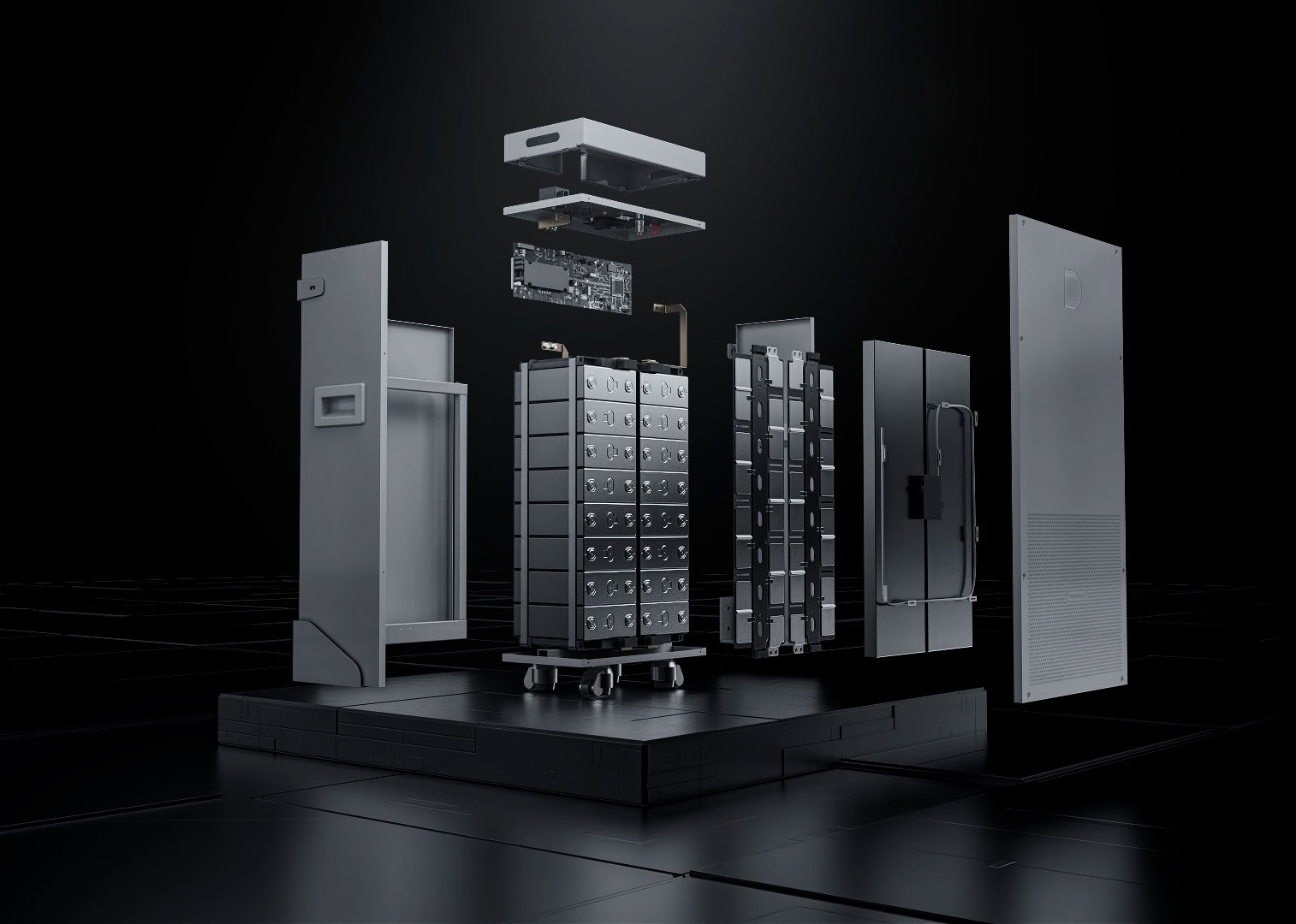

    Compared to the previous generation ,the size is reduced by 24%, and the capacity increases by 40%

  • c2icon02.svg

    Continuous discharge current 200A, maximum continuous discharge power 10kW

  • c2icon03.svg

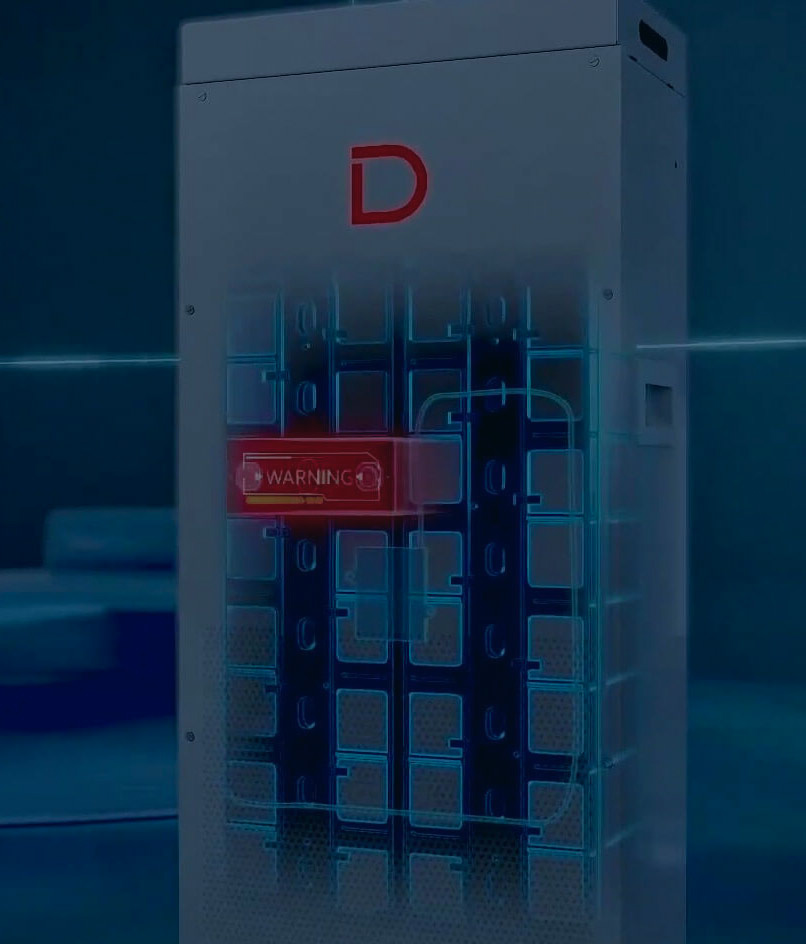

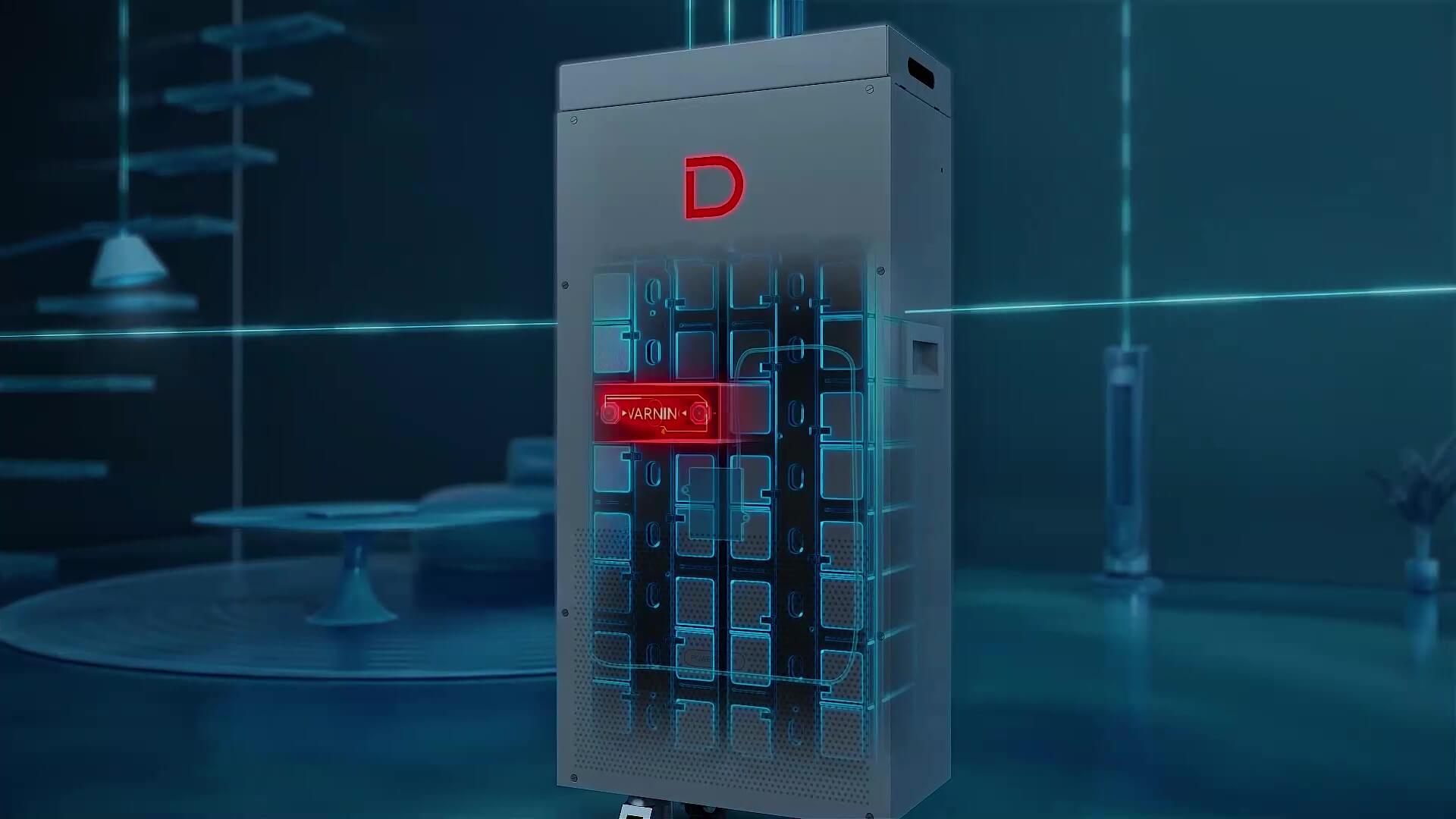

    Fire Protection System: Optional Aerosol fire extinguisher

  • c2icon04.svg

    Unlimited Cycles / 10 Years

  • download-288.svg

    Maximum can be expanded to 716.8kWh(no HUB)


Technical Specifications

  • 2-933.png
  • 3-435.png
  • 4-174.png
  • Model
    PowerBrick
    Battery Type
    LiFePO4
    Nominal Battery Energy
    14.336kWh
    Nominal Voltage/Capacity
    51.2V/280Ah
    Recommended Charge/Discharge Current
    140A (0.5C)
    Max. Charge Current
    200A
    Max. Discharge Current
    200A
    Depth of Discharge
    95%
    Communication
    CAN/RS485
    Cycle Life
    Unlimited cycles / 10 Years
    Protection Level
    IP20
    Net Weight
    114Kg
    Dimension[W*D*H]
    435*233*857mm (No wall -mounted bracket)
    Maximum Parallel Modules
    50
    Charging Temp. Range
    0~55℃
    Discharging Temp. Range
    -20~55℃
    WIFl Module
    Built-in WlFlmodule; APP OTA function
    Fire Protection System
    Optional Aerosol fire extinguisher
    Certification & Safety Standard
    UN38.3; CE
    Compatible Inverters
    SMA/Victron/ngeteam/Delios/Goodwe/Solis  /Deye/SAJ/Voltronic/Sungrow etc
