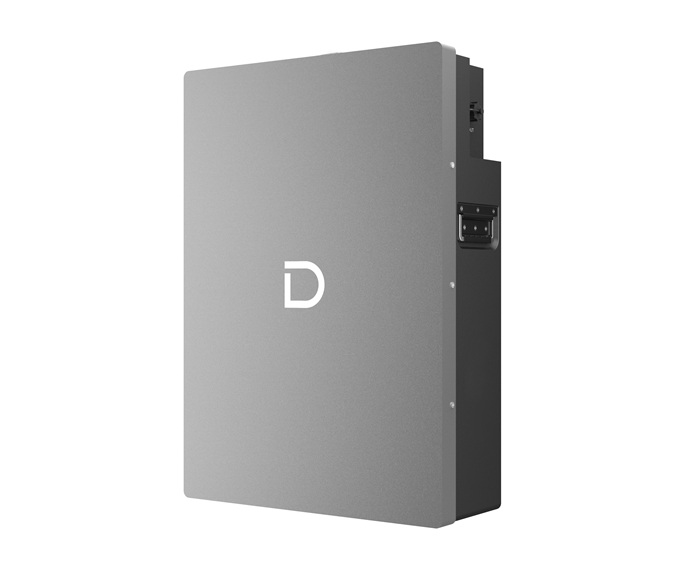

DL5.0

  • 5.12 kWh
  • Up to 50 batteries can be connected in parallel

DL5.0 has a larger capacity design for residential and commercial storage applications. Up to 50 batteries can be connected in parallel to meet the needs of more users. The optional OTA function enables remote update & easy monitoring. Powerful, high capacity and modular.

Product Features

  • c2icon01.svg

    APP Monitoring (optional)
    Real-time monitoring & Remote upgrade available

  • c2icon02.svg

    Module Design
    Flexible expansion

  • c2icon03.svg

    Easy Installation
    Stackable with flexible brackets

  • c2icon04.svg

    High Safety LFP
    Cell level monitoring and balancing

  • download-288.svg

    Wide Compatibility
    Matching with leading inverters


Technical Specifications

  • 1-557.png
  • 3-501.png
  • 2-837.png
  • Model
    DL5.0
    Battery Type
    LiFePO4
    Nominal Battery Energy
    5.12 kWh
    Nominal Capacity
    100Ah
    Nominal Voltage
    51.2V
    Operating Voltage
    44.8~57.6V
    Recomended Charge & Discharge C Rate
    0.5C
    Recommended Charge/Discharge Current
    50A
    Max. Power Charge/Discharge Current
    75A
    Peak Power Charge/Discharge Current
    100A(15S)
    Depth of Discharge (DOD)
    90%
    Net Weight
    44 kg
    Dimension[W*D*H]
    481*535*140 mm
    Charging Temp. Range
    0~55℃
    Discharging Temp. Range
    -20~55°C
    Communication
    CAN/RS485/RS232
    Cycle Life
    ≥6000 Cycles
    Protection Level
    IP20
    Expansion
    Up to 50 units in parallel
    Pros
    Can be used in both off-grid and hybrid setups, compact design
    Certification & Safety Standard
    UN38.3/CE-EMC/IEC62619
    Compatible Inverters
    SMA/Victron/Ingeteam/Delios/Goodwe/Solis/Deye/SAJ/Voltronic/Sungrow etc.
