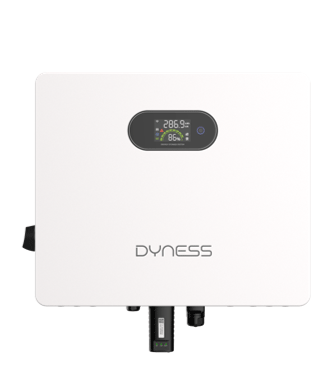

Solar Mate
- 6000/12000W
- IP65
Solar Mate directly connects the battery to the solar system on the PV side, without installing an additional energy storage inverter or replacing the current solar inverter. In addition, no component replacement or AC side wiring changes are required, saving the waiting time for grid connection permit application, which is very friendly to families with installed solar systems.
Product Features
-
Easy installation
No need to wait for grid connection permit -
High Compatibility
supports mainstream single-phase/three-phase inverters -
Ultra Safe
Anti-backflow protection & PV AFCI（optional） -
Smart O&M
One-click configuration & real-time load monitoring -
IP65 Protection
Fearless of outdoor insatallition, strong environmental adaptability
Technical Specifications
-
Product Model D12K-PVC Max.PV Input Voltage（V） 1000 Max.Output Power（W） 12000 Nominal Output Voltage（V） 600 Strings per MPP Tracker 2/1 Size(W/H/D)(mm) 470*400*185 Protection Degree IP65(can outdoor use) -
Product Model D6K-PVC Max.PV Input Voltage（V） 600 Max.Output Power（W） 6000 Nominal Output Voltage（V） 300 Strings Per MPP Tracker 1/1 Size(W/H/D)(mm) 470*400*185 Protection Degree IP65(can outdoor use)
