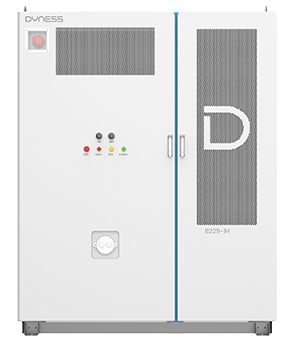

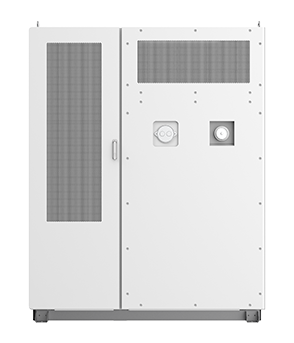

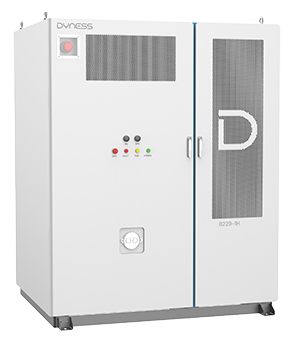

B229-1H
- 230kW/229kWh
- high C-rateall-in-one cabinet
The B229-1H is a high C-rateall-in-one cabinet equipped with 320Ah automotive-grade LFP cells and a system rating of 230kW/229kWh, ideal for storage-charging integration and small-to-medium commercial & industrial applications.
Product Features
-
High C Rate
Supports 1C continuous charge/discharge on the AC side, integrates with chargingpiles via DC coupling for 2C continuous discharge. -
Flexible Adaption
Pre-installed DC expansion ports adapted to multiple modes such as storage+charging, storage, or PV+storage +charging. -
Optimized Application
Millisecond-level response to grid frequency regulation.Dynamic high-rate capacity expansion enhances grid stability and reduces project costs. -
Ultimate Safety
C5 anti-corrosion grade + triple-layer fire protection + explosion-proof ventilation.Cell-level precision protection +system-level activedefense.
Technical Parameters
-
Product Model B229-1H
Battery Type LFP (LiFePO4) Nominal Capacity
229kWh Dimension (W*D*H) 1895*1520*2360mm
Weight 2800±100kg (TBD)
Ingress Protection IP55 Rated Power
230kW
