Commercial Energy Storage Systems - High Voltage

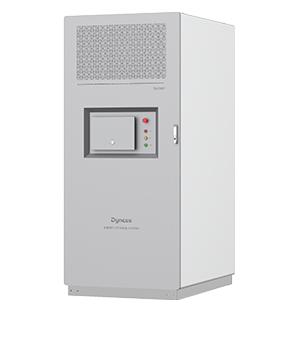

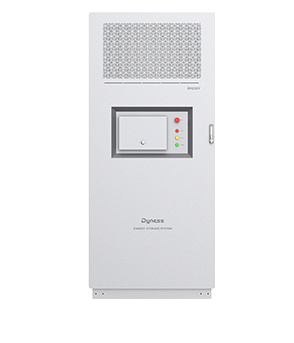

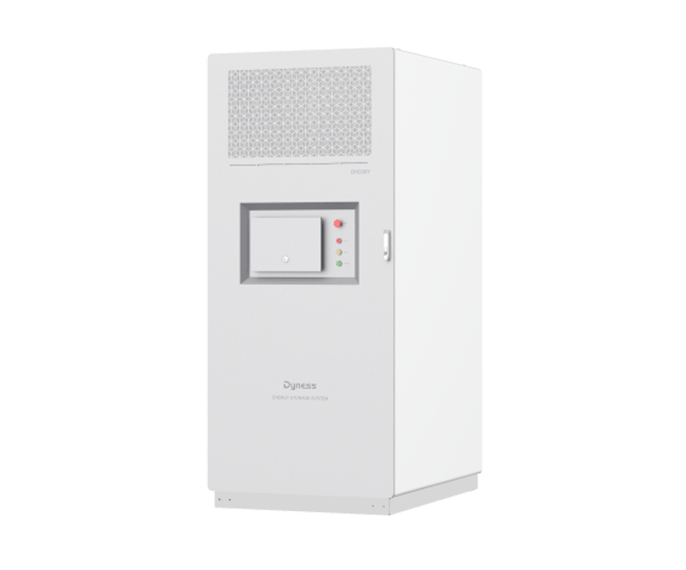

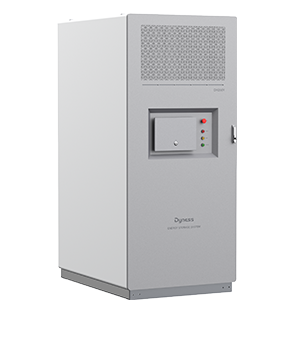

DH200Y

Dyness' first high security high energy den-sity DC1000V liquid cooling all-in-one energy storage system,compact structure design reduces space, 232kWh in a single cabinet.supports AC and DC side expansion at anytime, zero parallel capacity loss.

‍

Buy Now >

Battery Technical Specifications
Battery Type	LFP(LiFePO4)
Battery Capacity	280Ah
PACK Configuration	1P52S
PACK Quantity	5 PACK/Cluster
Rated Current	140A
Max. Current	160A
Voltage Range	754~936Vdc
Nominal Capacity	232kWh
AC Output(On Grid)
Rated Power	100kW
AC Maximum Current	145A
AC Rated Voltage	400Vac
Wring Method	3P4L+PE
Frequency	50Hz
Power Factor	1(Leading)~1(Lagging)
THDi	≤3%（Rating power）
Max. Number Of Parallel Expansions	12
System parameters
Dimensions(WxDxH)	105516452398mm
Weight	2600±100kg
Max. Efficiency	≥90%（TBD）
Liquid-cooling Power	2.5kW (Cooling), 2kW (Heating)
Temperature	-20~50℃ (Derating above 45℃)
Humidity	0~95% (Non-condensing)
Ingress Protection	IP55
Anti-corrosion Grade	C3/C5
Cooling Method	PACK Liquid-cooling + PCS Air-cooling
Noise	≤75dB (TBD)
Elevation	3000m (Derating above 2000m)
Display	Touch screen
Fire Protection	Aerosol/Perfluorohexanone
Communication	Ethernet/4G/RS485
Certification	CQC, CE, TUV

High voltage Battery

DH200Y

DH200Y

Tower Pro

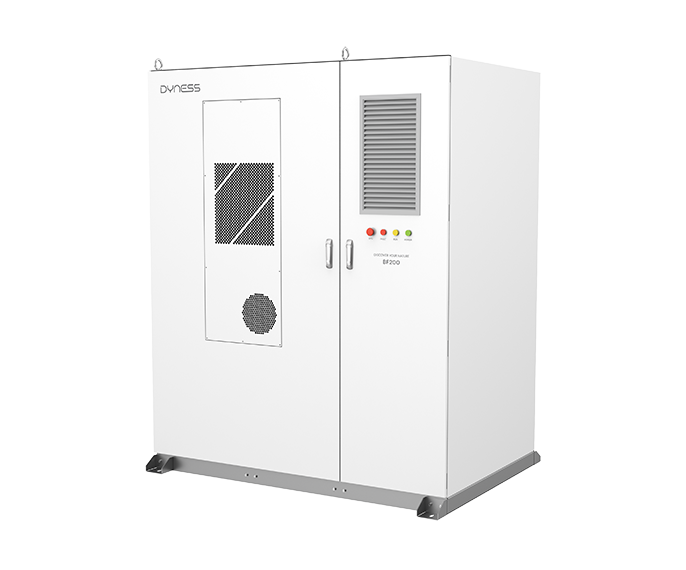

DH200F

PowerRack HV4

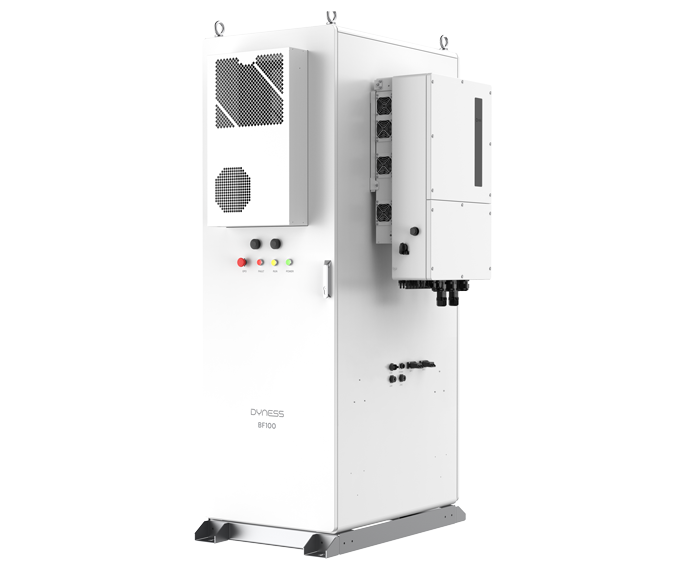

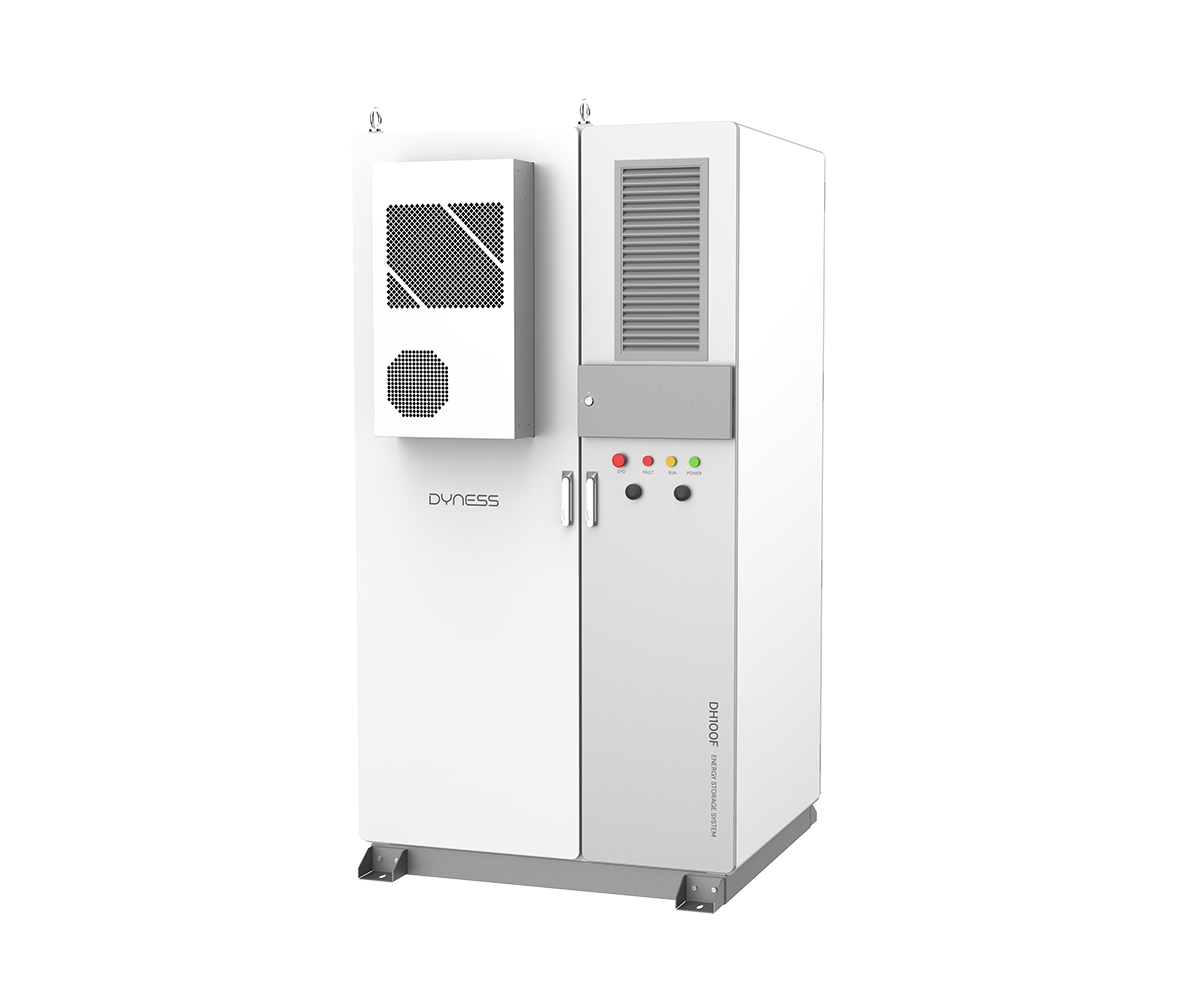

DH100F

Powerbox Pro

DL5.0C

PowerBrick

Junior Box

B4850

PowerStone

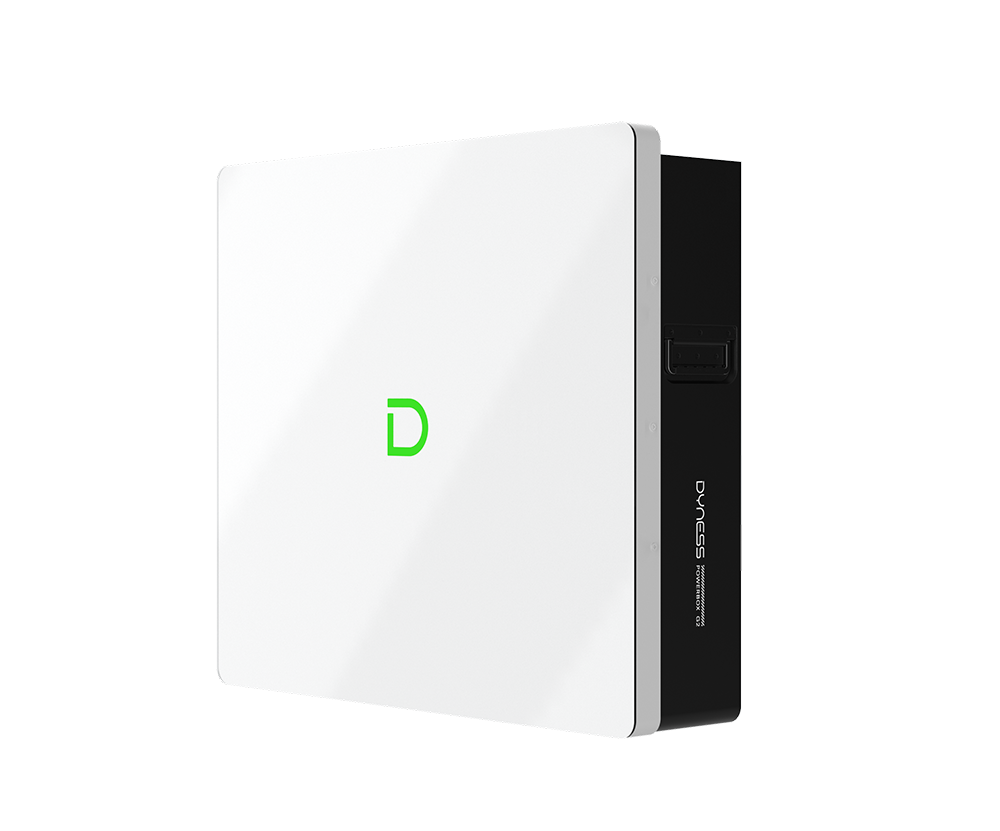

Powerbox G2

PowerBrick

Powerbox G2

DL3.6

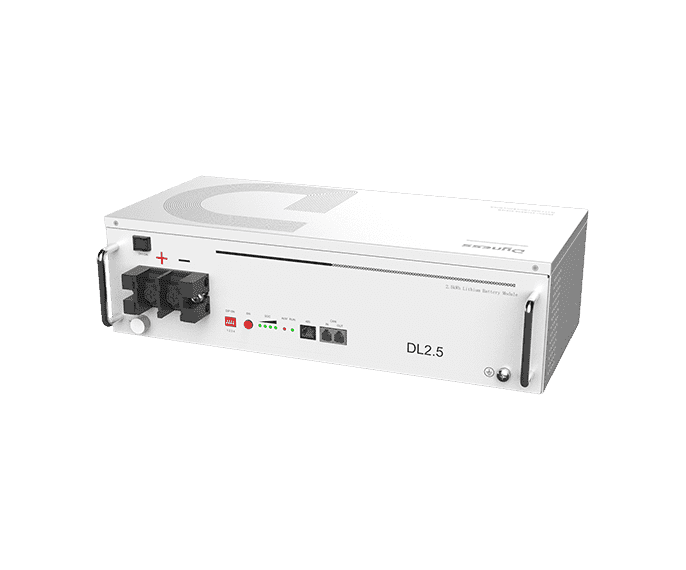

DL2.5

DL5.0X

BX51100

A48100

DL5.0C

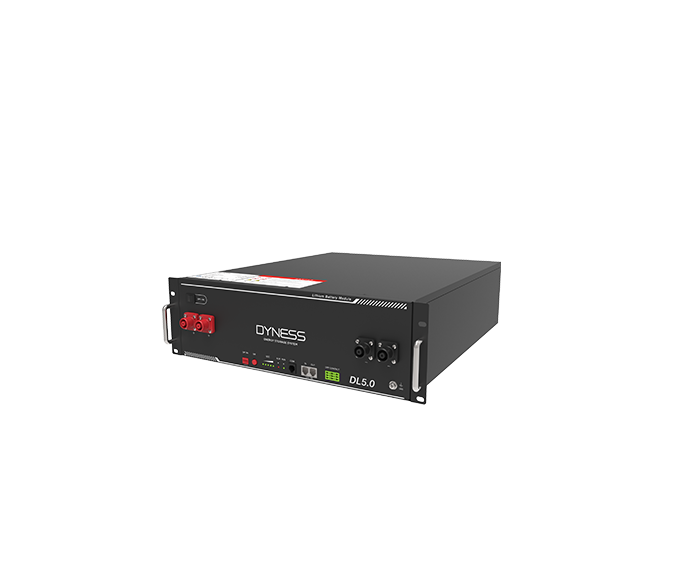

DL5.0

PowerDepot H5B

B3

B4850

Powerbox Pro

PowerRack HV4F

Tower Pro

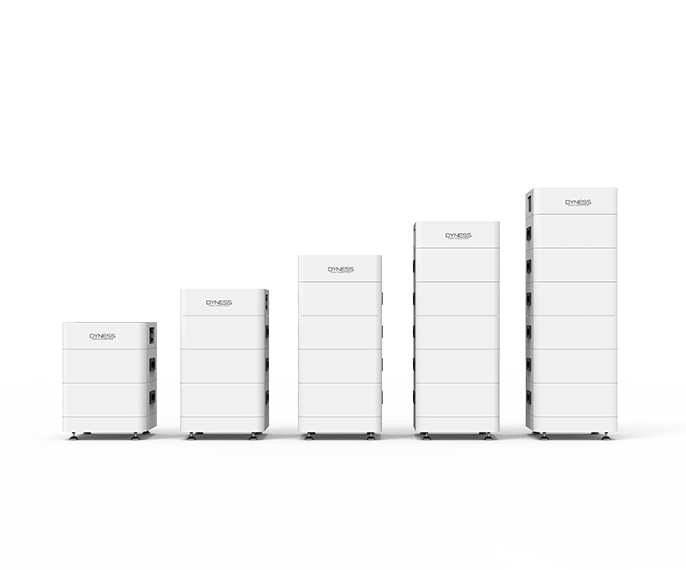

Tower
